Fix the ac power adapter wattage and type cannot be determined

Fix the ac power adapter wattage and type cannot be determined. Error computer “The AC power adapter type cannot be determined ..” dell ac power adapter wattage and type cannot be determined  When you plug in, the computer will get the message “The ac power adapter wattage and type cannot be determined .. as shown below

the ac power adapter wattage and type cannot be determined
the ac power adapter wattage and type cannot be determined

Warning: Please read all of this article before working – may be damaged for your computer

Hello – I could use some help, and know there have been similar posts.  I have a Dell Inspiron 15-7569 and have really liked it.  I have not had it that long, but long enough the warranty expired.

Issue:

  • Getting this message when booting up “Alert! The AC power adapter wattage and type cannot be determined. The battery may not charge. The system will adjust the performance to match the power available.”  It will then say ‘plugged in not recording’ if you look at the charging icon in the bottom right.
  • It was intermittent it seemed for a while, once in a while it would work (and still does on rare occasion) but we get this basically every time now, and so the laptop adjust the performance so using it becomes very slow.
  • I researched significantly online and see others have dealt with similar issues.

Based on what I found I have:

  1. Updated the System BIOS
  2. Used the diagnostic tools, and it confirmed the battery is good
  3. The adapter seems in good shape and fine (and has the green light indicator)
  4. Disconnected the internal battery to fully reset – when I did that I visually checked the adapter plug and it all seemed okay

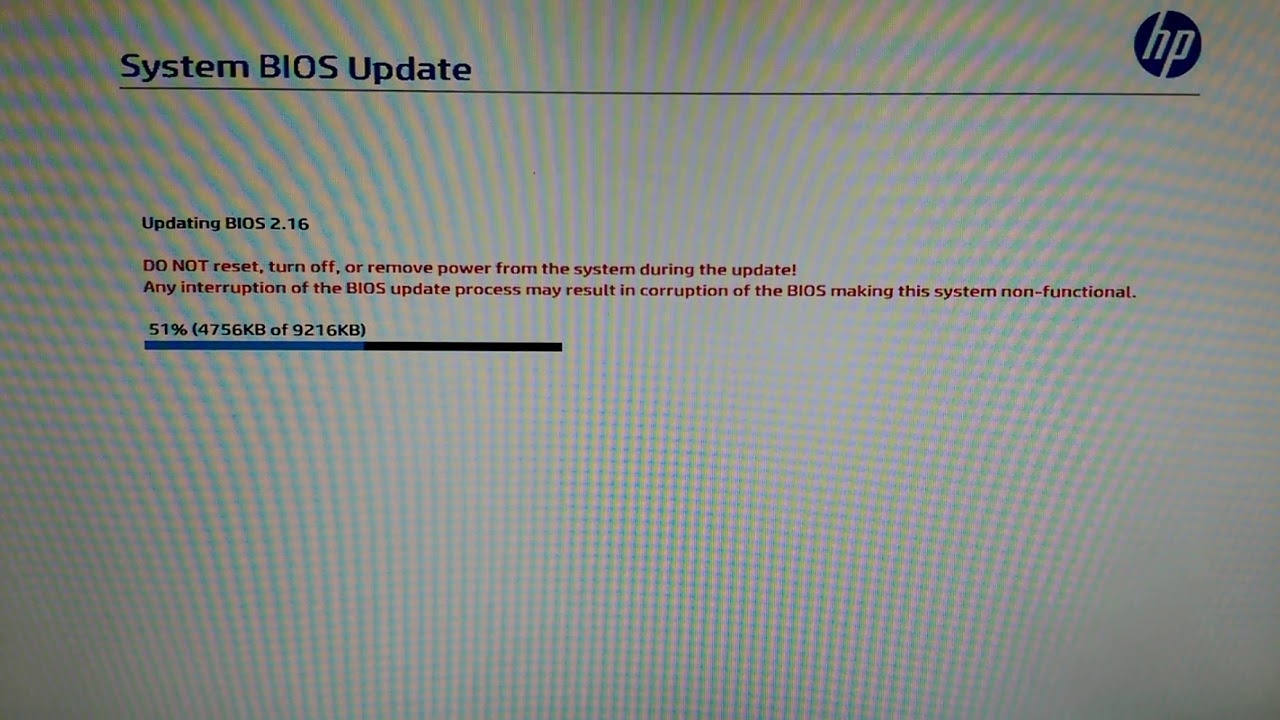

Updated the System BIOS
Updated the System BIOS

I’m really open to suggestions!  Thanks.

The AC power adapter type cannot be determined


At the same time you feel the computer is running slower than usual, or the battery is not charging. So what is the error message above? Along ngolongtech.net learn through this article

You understand Vietnamese to Vietnamese:

“Cannot determine power and AC adapter type. The battery may not charge, the system will adjust its performance to match the available power.

Please connect Dell 90 W or higher AC adapter for the best system to attack F3 key (before F1 or F2 key) if you see power warning message again. Press F1 to continue, F2 interrupts the installation utility “

The cause of the error The ac power adapter wattage and type cannot be determined
The first and most common cause is due to charging, your charger may be used for a long time to drop the voltage leading to this notice, in addition, you may also have to buy non-genuine components, not the right voltage.

Damaged laptop batteries can also lead to the above notification, although the rate is lower

Error of charging IC on our mainboard with ic to manage the output and input of the charger if the faulty chip will not charge

Fix charging error when booting Dell Insprion Machine:
To handle this case is quite simple, you need another genuine charger with the correct number of Volt – Amp of the computer, then plugged in to check for more notifications.

Next is to check the battery, if determined not due to charging, then you remove the battery to run the machine for a while to see if there is an error message.

If both of the above cases do not work, then a high percentage of your device has a charging IC error on the Main. Fall into this case, we will not be able to fix it yourself, please bring to the reputable computer repair centers so that the technician there can check and report back to you more accurately.

Also, if you want to turn off this notification, do the following:

After restarting the computer, press F2 to enter BIOS settings.

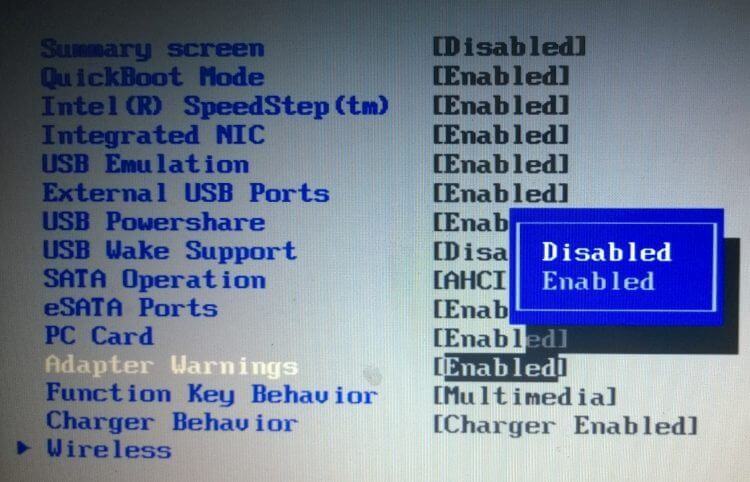

Switch to the Advanced tab, select Adapter Warnings and then select Disabled. Finally, press the F10 key to save the BIOS. Like in the image below


Fix the ac power adapter wattage and type cannot be determined
Fix the ac power adapter wattage and type cannot be determined


Fix: Dell ac power adapter wattage and type cannot be determined

Going with the adapter replacement as the inexpensive first step, then guess I will move on to the DC jack and really hope one of the two work so I’m just not throwing money away

What is The ac power adapter wattage and type cannot be determined?

The first and most common cause is due to the fact that the charger, if your charger lasts for a long time, the voltage drop leads to this message, in addition you may also have to buy non-genuine parts, with the wrong voltage.

A damaged laptop battery can also lead to the above message, albeit at a lower rate

The charging IC on our motherboard has an IC to manage the output and the charger, if the charger is faulty, the charger will not be

Dell ac power adapter wattage and type cannot be determined
Dell ac power adapter wattage and type cannot be determined

Fix charging error when starting Dell Insprion:

To handle this case quite simply, you need another genuine charger with the correct Volt-Amp number of your computer, then plug it in to check if there are any more messages.

Next is to check the battery, if it is determined that it is not charging, then remove the battery so that the machine runs for a while to see if there is any error message.

Why your AC power adapter type cannot be determined?

As the error says, this means your PC cannot identify the charger you plugged in. The power connector consists of 3 pins, 2 are power and earth, the 3rd is a signal line to identify the PSU as a compatible (Dell) unit. If the Laptop does not get the signal, it does not allow the PSU to charge the battery, it will, however, allow it to power the laptop. This will protect the battery from high currents if the wattage of the charger is higher than the OEM specification. If you choose to ignore this message, the system performance will go down, and you will notice that your processor clock speed has been halved.

This problem can be caused by using the wrong charger. It can also be caused when the data connection for charger identification is broken; it could be due to a problem in the charger (cable, plug or central pin) or in the laptop (power input port or motherboard). While trying a new adapter is a good idea, changing the battery is not. This error is not caused by the battery in any way. In fact, you will get the same error if you just plug in the adapter without the battery.

Troubleshooting

If you have a charger that has been working before, then do not worry. The fault is a common one and happens because the plug sits so proud from the side of the laptop that it constantly gets knocked and causes the connector on the power board to fail; most commonly open circuiting the signal line. Wriggling it around might solve the issue but temporary. It is a matter of time before your charger will need you to plug it in in an awkward angle for it to work. Eventually, it will stop working all in all.

You can know the source of your problem by trying your charger on a similar laptop, or by plugging in a similar charger. If your charger works in another laptop or the new charger still shows the same error in your PC, then your problem is likely to be the DC charging port in your laptop, or a bad charging system on your motherboard. If another charger works on your PC or your charger shows the same error on another laptop, then the problem is the charger. Below are the solutions to this problem.

Power cycle your PC

Completely discharging your PC might fix the unresponsive state of the charging system.

  1. Unplug your charger, power off your laptop, and remove your battery
  2. Hold down the power button for at least 30 seconds
  3. Put the battery back in, with the charger and reboot
  4. Check if this fixed it

Workaround with ThrottleStop

There is a workaround you can try in order to fix this issue. However, you will have to use a tool named ThrottleStop. It’s a really lightweight tool that you can download for free. Here is the link. Once the program is downloaded, follow these steps:-

  1. Open ThrottleStop.
  2. Now uncheck the option named “BD PROCHOT”.
    Enabling BD PROCHOT
    Enabling BD PROCHOT
  3. Check if the issue is resolved.

If it isn’t resolved you will have to do these additional steps:-

  1. Set the “Multiplier” to “Max”.
  2. Set the “Speed Shift EP” to “1”.
  3. Check if the issue is resolved.

Get a new AC adapter/Charger

If you have tried troubleshooting and you have found that your charger does not work on a similar computer or a similar charger works on your PC, then it is time to change your AC adapter. If you are sure your charger worked for an extended period before, then the problem could be anywhere. It could be loose soldering in the charger brick, a broken pin, fried capacitors, a broken connection, etc. If you think you can try repairing the charger (by changing cables, capacitors, soldering) then go ahead. In most cases, the charger cannot be salvaged and you will need to buy a new charger.

Please note the wattage (e.g. 65W, 90W, 130W etc.) of your OEM charger, the voltage (12V, 19V) and charging current (1A, 2A, 4A). Make sure this numbers match with the new charger, otherwise you will get the same error.

Change your DC power jack

To be honest, Dell laptops come with some flimsy soldering and charging ports. I have repaired a lot of Dell computers and I have been surprised how easily the soldering comes off, and the amount of DC charging ports I have had to replace. If you are the kind that will get the computer to charge by wiggling the charger around, then it is time to change the DC charging port. Attempting a repair on the port is no good because you will need to destroy the whole thing to get to the solders.

The power board on some Inspiron models is a separate unit to the motherboard and has the power socket mounted directly on it. You can open your PC, unplug the charging port from the motherboard, and replace it with a new one. It will cost you a few dollars and you can get one from Amazon, eBay or from here (search for ‘DC power input’ or something similar). The local repair shop might have one too. Make sure that the part numbers (e.g. DD0R03PB000 or DD0VM9P000) match or at least make sure that the wiring is the same and the units you are swapping are compatible.

If your laptop DC input port is soldered onto your motherboard. You will have to unsolder it and solder back a new one. If the problem persists, then your motherboard might be the problem and will need replacement.

NB: You can get a direct/external battery charger if you can’t seem to find the problem. If your laptop is still under warranty, it is recommended to call your manufacturer; a repair will be made, or a replacement sent. Also, make sure that you plug in your charger directly into the AC outlet/socket: power surge protectors and other power conditioning equipment can affect the sinusoidal nature of your supply and throw this error.

Disabling Power Warnings

If you are able to charge your computer normally but the warning keeps coming up, you can make the warnings go away permanently by changing the BIOS settings. Every laptop has settings which determine whether the power warnings will show or not. In this solution, we will navigate to your BIOS and disable the power warnings.

Note: This doesn’t mean that the issue you are facing will go away. We will be simply disabling the warnings.

  1. Restart your computer and enter the BIOS by pressing the DEL key or F2 according to the model of your computer.
  2. Once in BIOS, go to the Advanced tab and then toggle the option of Adapter warnings. This option may be present in another tab as well.

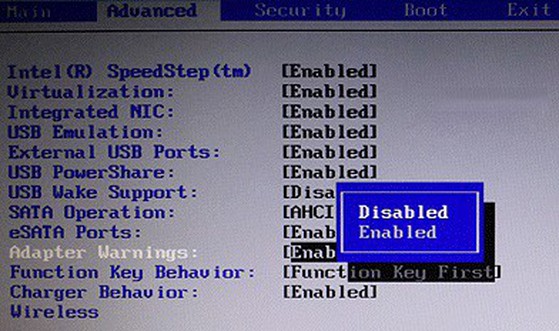

    Disabling Adapter Warnings
    Disabling Adapter Warnings
  3. Save changes and exit. Restart your computer and the warning will be disappeared.

TIP: If none of the Methods have resolved the issue for you, we recommend using Restoro Repair Tool which can scan the repositories to replace corrupt and missing files. This works in most cases, where the issue is originated due to a system corruption. Restoro will also optimize your system for maximum

Video to fix the ac power adapter wattage and type cannot be determined
